RETRACTOR

Connection type RETRACTOR joins the position of two nodes and provides a FLOW-CONVERTER constraint between the material flow degree of freedom (10) at the second node and the rotational degrees of freedom at the first node of the connector. This connection type can be used to model retractor and pretensioner devices in automotive seat belts (see Seat belt analysis of a simplified crash dummy) or cable drums in winch-like devices.

RETRACTOR connections cannot be used in two-dimensional and axisymmetric analyses in Abaqus/Explicit.

Related Topics
Connector elements
Connector element library
In Other Guides
*CONNECTOR BEHAVIOR
*CONNECTOR SECTION

ProductsAbaqus/StandardAbaqus/ExplicitAbaqus/CAE

Description

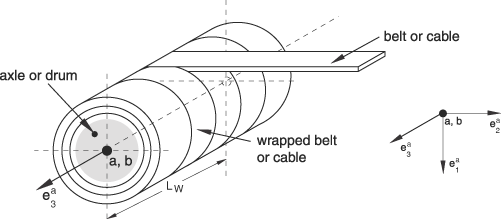

Figure 1. Connection type RETRACTOR.

Connection type RETRACTOR imposes kinematic constraints and uses local orientation definitions equivalent to combining connection types JOIN and FLOW-CONVERTER.

Summary

RETRACTOR
Basic, assembled, or complex: Assembled
Kinematic constraints: JOIN + FLOW-CONVERTER
Constraint force output: f1,f2,f3,m3
Available components: None
Kinetic force output: None
Orientation at a: Required
Orientation at b: Ignored
Connector stops: None
Constitutive reference lengths: None
Predefined friction parameters: None
Contact force for predefined friction: None
